Product Description:

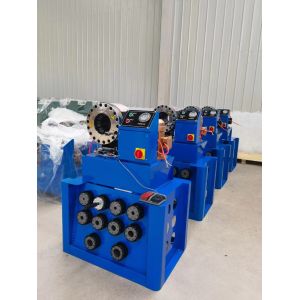

The Portable Hydraulic Hose Crimper is a powerful and versatile crimping machine designed to fit
different hose sizes. It is equipped with a 300T crimping force and
can reach a crimping speed of 200 Pcs/h, making it an ideal choice
for mass production. The machine is designed in a compact size of
950*630*700 Mm, allowing it to be installed in limited spaces. It
is powered by hydraulic and equipped with a different control
system, including a button panel for speed adjustment. With the
buttons, the user can easily adjust the speed to suit different
needs. The Portable Hydraulic Hose Crimper is a reliable and
efficient tool for crimping different sizes of hoses.
| crimping range | 6-38 mm(1/4~1.5") |
| quantity of dies | 8 sets |
| accuracy | 0.01 mm |
| output volume of pump | 2.5L/5L |
| system pressure | 26mpa/31.5mpa |
| motor power | 3kw/4Kw |
| voltage | 220v/240v/380v/415v (optional) |
| crimping force | 300 t |
| work efficiency | 200pcs/h |
| maximum open diameter | 104 mm |
| the max open tolerance | 20 ±mm |
| machine dimension | 950*630*700 mm |
| package dimension | 1000*680*750 mm |
| net weight | 275 kg |
| gross weight | 300 kg |
Features:
- Product Name: Portable Hydraulic Hose Crimper
- Size: 950*630*700 Mm
- Crimping Range: 1/4-1.5 Inch
- Type: Crimper
- Crimping Force: 300T
- Warranty: 1 Year
- PLC Pannal: Yes
- Crimping Range: 6 to 38mm
- Digital Panel: Yes
- Pressure Relief Valve: Yes
Technical Parameters:
| Name | Parameter |
|---|
| Voltage | 220v/240v/380v/415v (optional) |
| Crimping Speed | 200 Pcs/h |
| Motor Power | 3kw/4kw |
| Warranty | 1 Year |
| Size | 950*630*700 Mm |
| Max Pressure | 26mpa/31.5mpa |
| Crimping Force | 300T |
| Power Source | Hydraulic |
| Weight | 275kg |
| Type | Crimper |
| PLC Pannal | Yes |
| Digital Panel | Yes |
| Crimping Range | 6 to 38mm |
Applications:
FY Portable Hydraulic Hose Crimper【Model Number: FY-P38】
FY Portable Hydraulic Hose Crimper is a great tool for automotive
repair shops, industrial production lines, and hydraulic hose
assemblies. With its portability, it can be taken almost anywhere
for quick and easy hose crimping. It has a crimping range of 6 to
38mm, and can crimp different types of hoses including hydraulic,
air, water, and fuel. The size of the machine is 950*630*700mm, and
it has a maximum pressure of 26mpa/31.5mpa. The motor power of the
FY Portable Hydraulic Hose Crimper is 3kw/4kw, and it has a
crimping force of 300T.
The FY Portable Hydraulic Hose Crimper is perfect for a variety of
applications, including automotive, industrial, and agricultural.
It is ideal for replacing damaged or worn out hoses, or for
creating custom hoses. It is also a great tool for maintaining and
servicing existing hoses. With its portability and easy-to-use
design, the FY Portable Hydraulic Hose Crimper is a great choice
for professionals and DIYers alike.
Customization:
FY Portable Hydraulic Hose Crimper
Brand Name: FY
Model Number: FY-P38
Place of Origin: China
Warranty: 1 Year
Size: 950*630*700 Mm
Weight: 275kg
Max Pressure: 26mpa/31.5mpa
Type: Crimper
Features:
1. Suitable for 6 to 38mm hydraulic hose assembly.
2. PLC pannal, easy to operate.
3. Portable design, convenient to move.
4. High efficient, high accuracy.
5. High safety, with emergency stop button.
6. Heavy duty construction, long life service.
7. Ideal for Hydraulic Hose Crimper.
Support and Services:
Portable Hydraulic Hose Crimper Technical Support and Service
We provide technical support and service for Portable Hydraulic
Hose Crimper, including repair, maintenance, and troubleshooting.
Our customer service team is available to answer any questions you
may have about the product and its features. We also offer free
online tutorials, so you can learn how to use the product correctly
and safely.
If you need to repair or replace any parts of the Portable
Hydraulic Hose Crimper, our experienced technicians can help. We
offer a wide range of spare parts, and our technicians can get you
the parts you need quickly. We also provide a warranty on all our
products, in case of any defects.
For any questions or concerns you may have about Portable Hydraulic
Hose Crimper, please feel free to contact us. Our customer service
team is available to help you with any technical support and
service needs.
Packing and Shipping:
Packaging and Shipping for Portable Hydraulic Hose Crimper
The Portable Hydraulic Hose Crimper is securely packaged in
heavy-duty cardboard box, with cushioning material inside to ensure
it arrives in perfect condition. The box is labeled with all
necessary shipping information, including product description and
serial number. Shipping is handled by reliable carriers (e.g., UPS,
FedEx, DHL). Tracking numbers are provided to customers upon
request.
FAQ:
- Q: What is the brand name of this product?
- A: The brand name of this product is FY.
- Q: What is the model number of this product?
- A: The model number of this product is FY-P38.
- Q: Where is this product made?
- A: This product is made in China.
- Q: What does this product do?
- A: This product is a Portable Hydraulic Hose Crimper.
- Q: How does this product work?
- A: This product works by pressing the hose to make a secure
connection between two parts.
