    12V/24V Voltage Hydraulic Hose Crimping Machine For Car Loading With 600T Crimping Force And 10 Dies

    Ask Lasest Price
    Brand Name : FY
    Model Number : FY-51CZ
    Certification : CE
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : 2-7 working days
    • Product Details
    • Company Profile

    12V/24V Voltage Hydraulic Hose Crimping Machine For Car Loading With 600T Crimping Force And 10 Dies

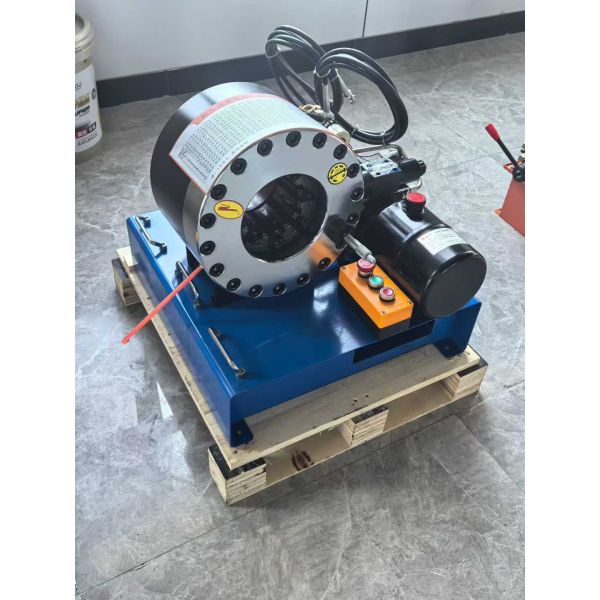

    12V/24V Automatic Hydraulic Hose Crimping Machine
    The 12V/24V Automatic Hydraulic Hose Crimping Machine is a professional-grade tool designed for efficient crimping of hydraulic hoses up to 2 inches in diameter. This battery-driven crimper delivers exceptional performance for automotive, construction, and industrial applications, combining convenience with reliable operation.
    Key Features
    • Dual Voltage Operation: Works with both 12V and 24V power sources for versatile use in vehicles and field applications
    • Automatic Functionality: Ensures consistent, precise crimping results with minimal operator effort
    • Wide Crimping Capacity: Handles hoses from 6mm to 51mm (1/4" to 2") diameter

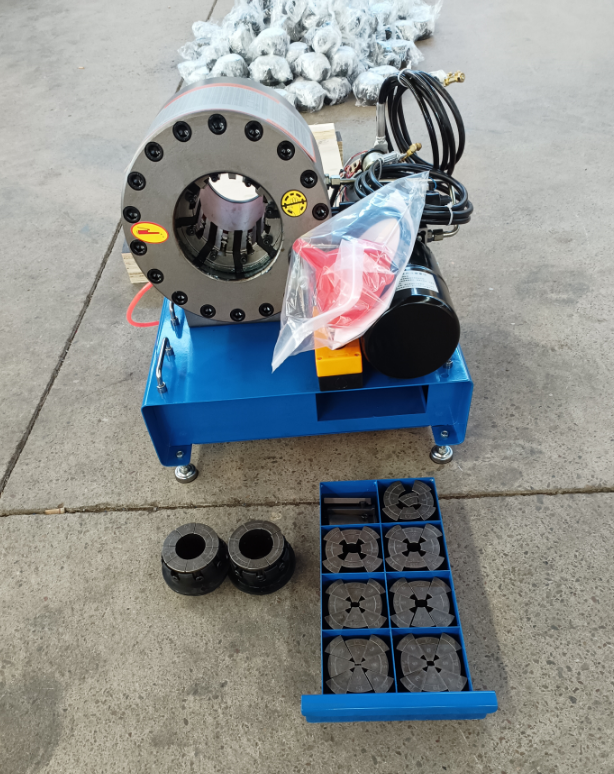

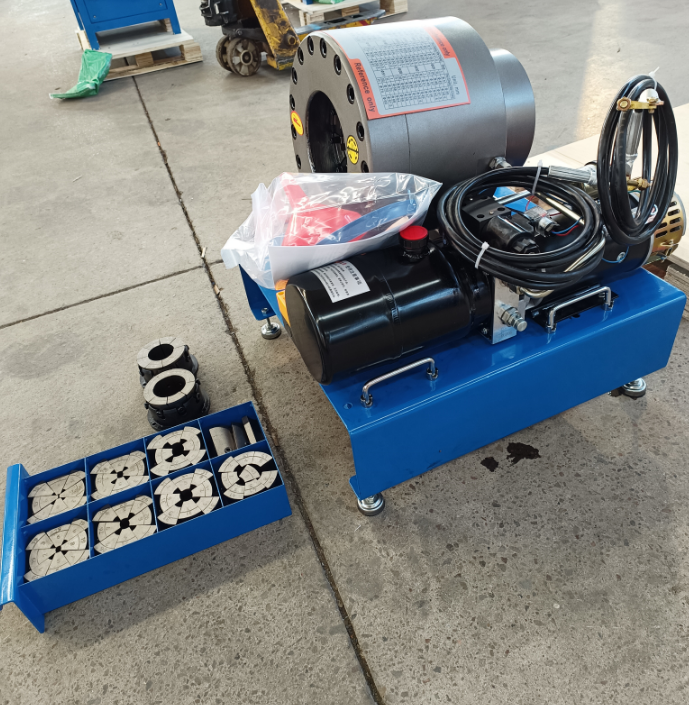

    • Comprehensive Die Set: Includes 10 high-quality dies for various hose sizes and types
    • Portable Design: Compact and lightweight for easy transport to job sites
    • High Power Force: Delivers 600T crimping force for secure connections
    Advantages
    • Enhanced Productivity: Automatic operation reduces hose preparation time significantly
    • Precision Engineering: Advanced hydraulic technology ensures accurate, uniform crimps
    • Cost Efficiency: Eliminates need for multiple machines with its versatile operation
    • User-Friendly: Intuitive controls suitable for both beginners and professionals
    • Safety Features: Built-in mechanisms ensure secure operation
    Technical Specifications
    ModelFY-51CZ Pipe Crimping Machine
    Crimping Range6-51mm (1/4-2 inch)
    Crimping Force600T
    Max. Opening114mm
    Die Sets10
    System Pressure30Mpa
    Accuracy0.01mm
    Standard Voltage12V/24V
    Motor Power3.6KW
    Dimensions (LxWxH)650x600x600mm
    Weight170KG
    Mobile Hydraulic Hose Crimping Machine
    Hose Crimping Machine in operation
    Close-up of crimping mechanism
    Machine control panel
    Hose crimping demonstration
    Finished crimped hose sample
    Note: Customized die sets with different shapes and sizes are available. Both 12V and 24V voltage options are supported.
    Optional Accessories
    • Quick Change Tool
    • Quick Change Die Set Rack
    • Car installing unit
    Forged Cylinder
    One-piece structure prevents oil leakage, saves transfer time, and increases productivity. Forged cylinder diagram
    Micrometer
    FY51CZ features high accuracy dial with 0.01mm precision. Micrometer detail
    Die Set Reference Sheet
    Comprehensive guide for selecting proper die sets for different crimping sizes. Die set reference sheet
    Applications
    Suitable for mobile van installations (12V/24V power) and various crimping applications including:
    • High pressure oil rubber hose assembly
    • Low pressure water or air hose pressing
    • Steel tube swaging
    • Wire rope pressing
    • Lock device making
    Machine in mobile van application Various crimping applications
    Product Demonstration
