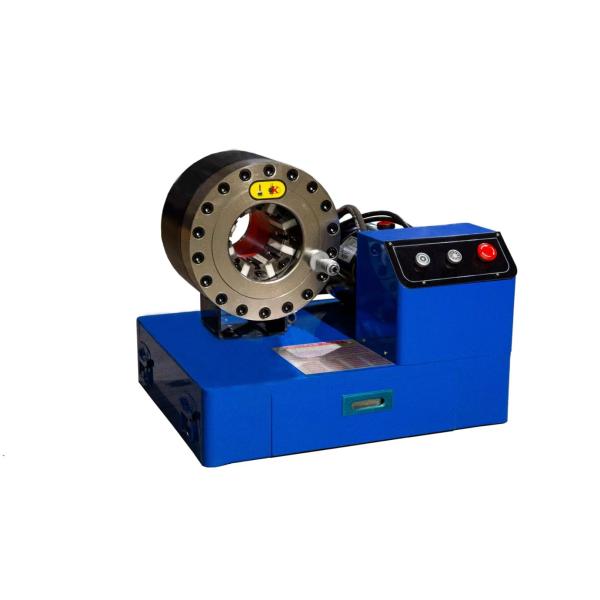

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic 6-51mm hose Crimper

Ask Lasest Price
Brand Name :	FY
Model Number :	FY-51CZ
Certification :	CE
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :	300 sets per month
Delivery Time :	2-7 working days

Add to Cart

Product Details
Company Profile

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic 6-51mm hose Crimper

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic Hose Pipe Crimping Machine 6-51mm/hose Crimper/hose Crimping Machine

Product Description

Introducing our 2 Inch Manual Hose Crimper, a powerful and versatile tool designed for efficient hose assembly in various applications. This battery-driven hydraulic hose crimping machine features 10 dies and accommodates hose sizes from 6mm to 51mm, making it ideal for both industrial and automotive use. With its striking blue color and robust construction, this crimper is not only functional but also visually appealing.

Key Features

Versatile Die Selection: Equipped with 10 different dies, this hose crimper allows you to easily crimp a wide range of hose sizes, ensuring flexibility for various applications.
Dual Voltage Operation: The machine operates at both 12V and 24V, providing the convenience of use in different environments, whether in the workshop or on-site.
Manual Control: Designed for ease of use, this crimper allows for precise control during the crimping process, ensuring consistent and reliable results.
Durable Construction: Made from high-quality materials, this crimper is built to withstand the rigors of demanding work environments, ensuring long-lasting performance.
User-Friendly Design: The intuitive design of the machine makes it easy to operate, allowing users of all skill levels to achieve accurate crimping.

Advantages

Cost-Effective: The battery-driven design eliminates the need for electrical outlets, reducing operational costs and making it suitable for remote locations.
Portability: Lightweight and compact, this 2-inch manual hose crimper is easy to transport, making it perfect for fieldwork and mobile repairs.
Reliable Performance: The crimper delivers consistent crimp quality, ensuring strong, leak-proof connections for hydraulic hoses.
Minimal Maintenance: With fewer components than electric models, this crimper requires less maintenance, enhancing its reliability and lifespan.

TECHNICAL DATA

Model	FY-51CZ Pipe Crimping Machine
Crimping Range	6-51(mm)
Crimping Force	600(T)
Hose Size	1/4-2(inch)
Max. Opening	114(mm)
Die Sets	10
output volume of pump	4L
System Pressure	30(Mpa)
Accuracy	0.01(mm)
the max open tolerance	30 ±mm
Standard Voltage	12V/24(V)
Motor Power	3.6(KW)
Length	650(mm)
Width	600(mm)
Height	600(mm)
Weight	170(KG)

12V/24V 10 Dies 2 Inch Blue Color Manual Braided Hose Crimper Battery Drive Hydraulic 6-51mm hose Crimper

NOTE
• " * " for non standard die sets
• Customized die sets with different shape size ia available
• Voltage 12V/24V is available

Crimping Range	6-51mm(1/4''-2''inner diameter of hose)
The Largest Crimping Pressure	600T
accurcy	0.01mm
Dimension	0.75m0.70m0.70m(0.37 m³)
Maximum open diameter	114mm
dies	10 sets
Item No.of dies	length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47)
Output volume of pump	4L
Rated pressure	30Mpa
Work efficiency	200pcs/h
Weight	170kg
packing dimension	750700700mm

OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• Car installing unit

Crimping Range	6-51mm(1/4''-2''inner diameter of hose)
The Largest Crimping Pressure	600T
accurcy	0.01mm
Dimension	0.75m0.70m0.70m(0.37 m³)
Maximum open diameter	114mm
dies	10 sets
Item No.of dies	length 60mm(15,19,23,26);Length 70mm(31,36,41);Length 80mm(47)
Output volume of pump	4L
Rated pressure	30Mpa
Work efficiency	200pcs/h
Weight	170kg
packing dimension	750700700mm

► FORGED CYLINDER
One piece structure, prevent oil leackage problem, save oil transfer time, increase productivity

► MICROMETER
FY51CZ is with high accuracy dial, 0.01mm.

► DIE SET REFERENCE SHEET
This sheet tells you how to choose proper die set for different crimping size

► WIDE USAGE
FY-51CZ Crimping machine can be used in a mobile van which can supply 12V/24V power.
For high pressure oil rubber hose assmbly crimping, low pressure water or air hose pressing, steel tube
swaging, wire rope pressing, lock device making, etc.
